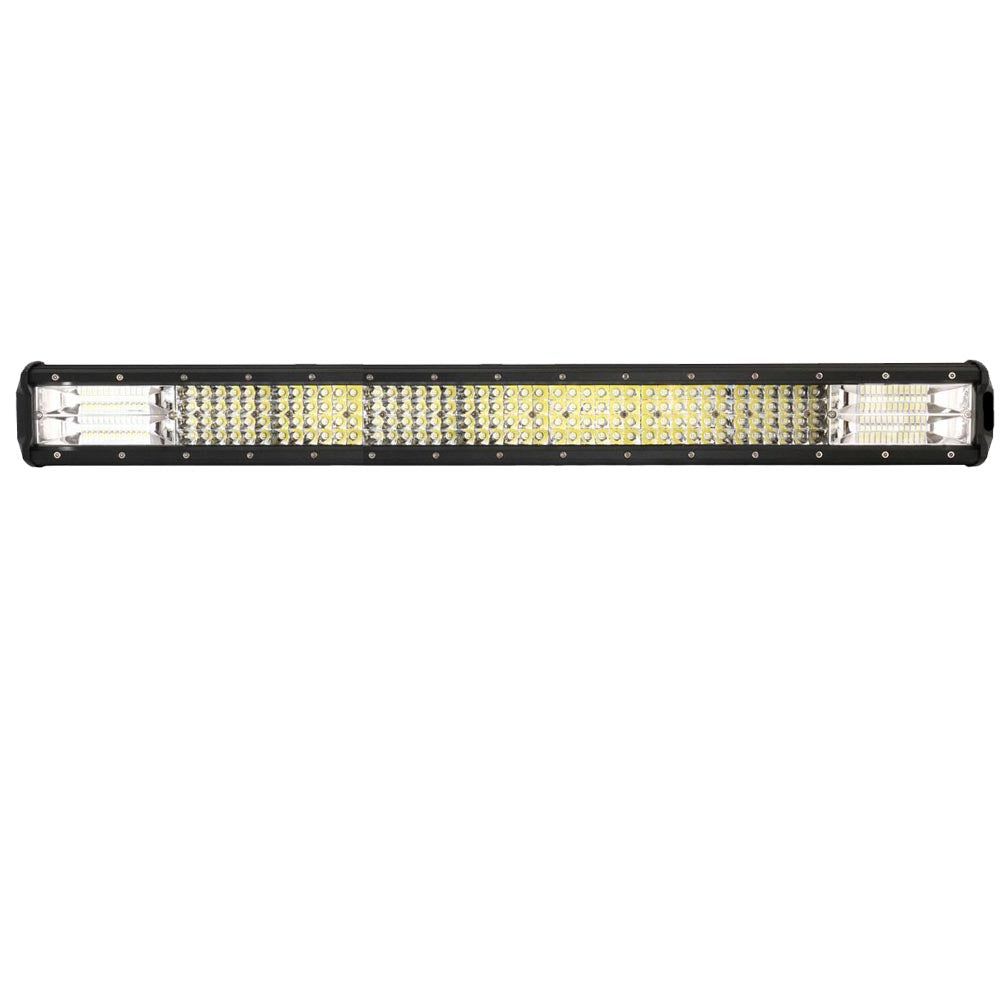

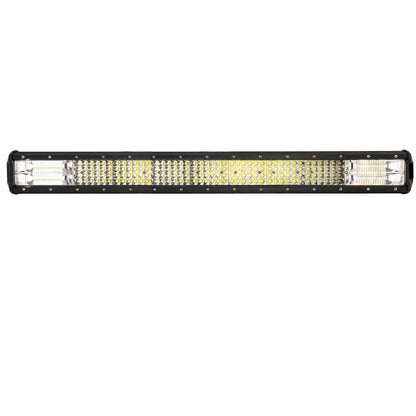

28 Inch Philips LED Light Bar Combo Beam

This 28 Inch Philips LED Light Bar gives compatible 4WD, work and driving light setups a high-output combo beam for both distance and spread. With 22420 lumens, 216 Philips Lumileds LEDs and a 9V-32V operating range, it is designed for serious auxiliary lighting applications where installation suits.

The combo beam combines 30° spot and 170° flood lighting to support longer-range visibility and wider area lighting. No wiring loom is included, so check your wiring requirements, mounting location, current draw and local road rules before installation or road use.

Specifications

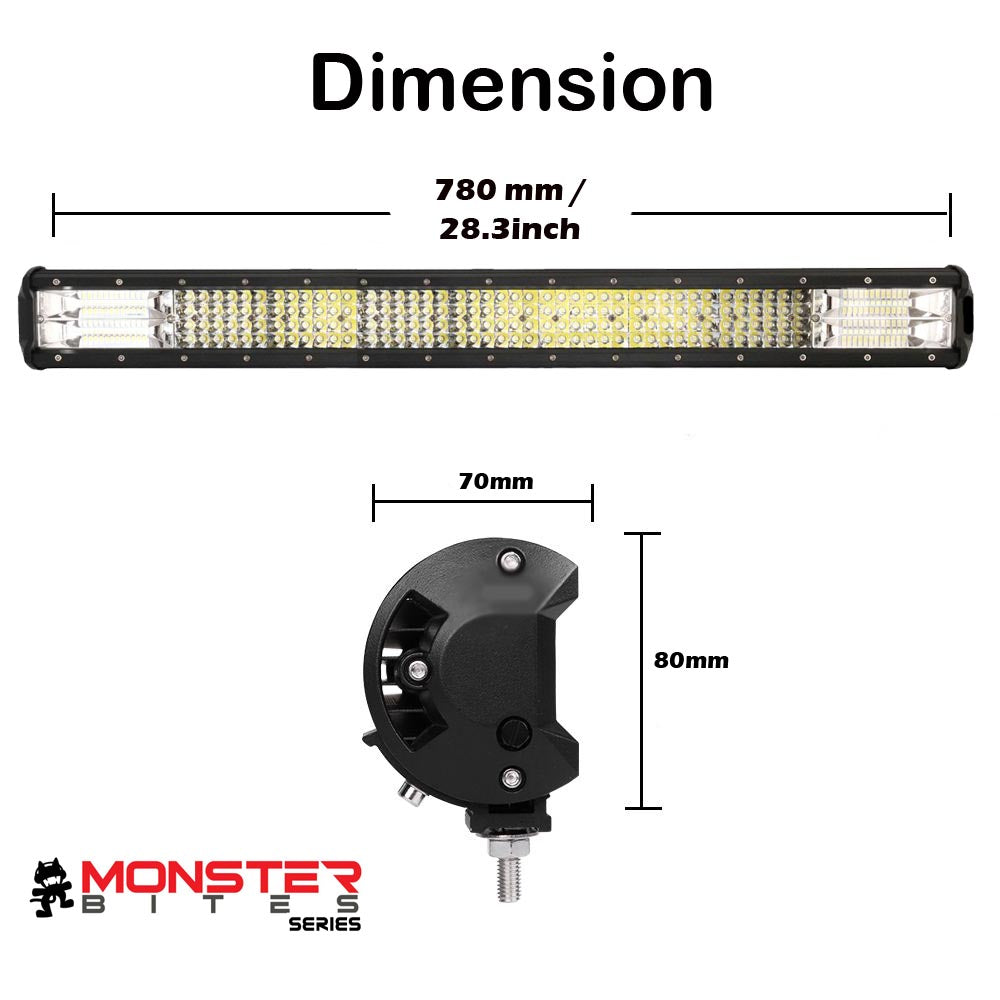

• Size: 28 inch
• LED type: Philips Lumileds 1W
• LED count: 216
• Colour temperature: 5700K
• Light output: 22420 lumens
• Peak intensity: 77472cd
• Voltage: 9V-32V
• Current draw: 9.1A at 12V, 4.55A at 24V
• Lens material: Optical grade hard-coated Lexan
• Housing: A360.0 cast face plate and extruded aluminium heat sink
• Beam: Combo beam, 30° spot and 170° flood
• Ingress protection: IP68
• Operating temperature: -20°C to 50°C
• Lifespan: 50,000 hours
• Weight: 3.5kg
• Note: Wiring loom not included

What’s Included

• 1 x 28 inch combo quad row LED light bar
• 2 x Lower adjustable mounting brackets
